Blazor Typeahead Control

Overview

The LoreSoft Blazor Controls project contains a collection of Blazor user controls.

Installing

The LoreSoft.Blazor.Controls library is available on nuget.org via package name LoreSoft.Blazor.Controls.

To install LoreSoft.Blazor.Controls, run the following command in the Package Manager Console

Install-Package LoreSoft.Blazor.Controls

Setup

To use, you need to include the following CSS and JS files in your index.html (Blazor WebAssembly) or _Host.cshtml (Blazor Server).

In the head tag add the following CSS.

<link rel="stylesheet" href="_content/LoreSoft.Blazor.Controls/BlazorControls.css" />

Then add the JS script at the bottom of the page using the following script tag.

<script src="_content/LoreSoft.Blazor.Controls/BlazorControls.js"></script>

Typeahead Features

  • Searching data by supplying a search function
  • Template for search result, selected value, and footer
  • Debounce support for smoother search
  • Character limit before searching
  • Multiselect support
  • Built in form validation support

Typeahead Properties

Required

  • Value - Bind to Value in single selection mode. Mutually exclusive to Values property.
  • Values - Bind to Values in multiple selection mode. Mutually exclusive to Value property.
  • SearchMethod - The method used to return search result

Optional

  • AllowClear - Allow the selected value to be cleared
  • ConvertMethod - The method used to convert search result type to the value type
  • Debounce - Time to wait, in milliseconds, after last key press before starting a search
  • Items - The initial list of items to show when there isn’t any search text
  • MinimumLength - Minimum number of characters before starting a search
  • Placeholder - The placeholder text to show when nothing is selected

Templates

  • ResultTemplate - User defined template for displaying a result in the results list
  • SelectedTemplate - User defined template for displaying the selected item(s)
  • NoRecordsTemplate - Template for when no items are found
  • FooterTemplate - Template displayed at the end of the results list
  • LoadingTemplate - Template displayed while searching

Typeahead Examples

Basic Example

State selection dropdown. Bind to Value property for single selection mode.

<Typeahead SearchMethod="@SearchState"
           Items="Data.StateList"
           @bind-Value="@SelectedState"
           Placeholder="State">
    <SelectedTemplate Context="state">
        @state.Name
    </SelectedTemplate>
    <ResultTemplate Context="state">
        @state.Name
    </ResultTemplate>
</Typeahead>
@code {
    public StateLocation SelectedState { get; set; }

    public Task<IEnumerable<StateLocation>> SearchState(string searchText)
    {
        var result = Data.StateList
            .Where(x => x.Name.ToLower().Contains(searchText.ToLower()))
            .ToList();

        return Task.FromResult<IEnumerable<StateLocation>>(result);
    }
}

Multiselect Example

When you want to be able to select multiple results. Bind to the Values property. The target property must be type IList<T>.

<Typeahead SearchMethod="@SearchPeople"
           Items="Data.PersonList"
           @bind-Values="@SelectedPeople"
           Placeholder="Owners">
    <SelectedTemplate Context="person">
        @person.FullName
    </SelectedTemplate>
    <ResultTemplate Context="person">
        @person.FullName
    </ResultTemplate>
</Typeahead>
@code {
    public IList<Person> SelectedPeople;

    public Task<IEnumerable<Person>> SearchPeople(string searchText)
    {
        var result = Data.PersonList
            .Where(x => x.FullName.ToLower().Contains(searchText.ToLower()))
            .ToList();

        return Task.FromResult<IEnumerable<Person>>(result);
    }
 }

Use Octokit to search for a GitHub repository.

<Typeahead SearchMethod="@SearchGithub"
           @bind-Value="@SelectedRepository"
           Placeholder="Repository"
           MinimumLength="3">
    <SelectedTemplate Context="repo">
        @repo.FullName
    </SelectedTemplate>
    <ResultTemplate Context="repo">
        <div class="github-repository clearfix">
            <div class="github-avatar"><img src="@repo.Owner.AvatarUrl"></div>
            <div class="github-meta">
                <div class="github-title">@repo.FullName</div>
                <div class="github-description">@repo.Description</div>
                <div class="github-statistics">
                    <div class="github-forks"><i class="fa fa-flash"></i> @repo.ForksCount Forks</div>
                    <div class="github-stargazers"><i class="fa fa-star"></i> @repo.StargazersCount Stars</div>
                    <div class="github-watchers"><i class="fa fa-eye"></i> @repo.SubscribersCount Watchers</div>
                </div>
            </div>
        </div>
    </ResultTemplate>
</Typeahead>
@inject IGitHubClient GitHubClient;

@code {
    public Repository SelectedRepository { get; set; }

    public async Task<IEnumerable<Repository>> SearchGithub(string searchText)
    {
        var request = new SearchRepositoriesRequest(searchText);
        var result = await GitHubClient.Search.SearchRepo(request);

        return result.Items;
    }
}

Generate ASP.NET Core WebAPI model with Entity Framework Core Generator

Overview

In this tutorial, you’ll learn how to use the Entity Framework Core Generator to create an Entity Framework Core data model for an ASP.NET WebAPI. Entity Framework Core Generator (efg) is .NET Core command-line (CLI) tool to generate Entity Framework Core model from an existing database.

The code for this tutorial is available at https://github.com/pwelter34/EntityFrameworkCore.Generator.Demo

Tracker Database

This tutorial will be a database first model. The database is a simple task tracking database.

Tracker Schema Diagram

The DDL script can be downloaded here. To create the database on your local SQL Server, run the following command.

sqlcmd -S localhost -i Tracker.sql -E

ASP.NET Core Web API Project

To get started, create a new ASP.NET Core Web API project. You can either use Visual Studio or a command line. In this demo, you’ll use the command line

dotnet new webapi

You’ll need a few nuget packages for the mapper and validation classes.

dotnet add package AutoMapper
dotnet add package AutoMapper.Extensions.Microsoft.DependencyInjection
dotnet add package FluentValidation.AspNetCore
dotnet add package Swashbuckle.AspNetCore

Tracker Project

Entity Framework Core Generator

To use Entity Framework Core Generator, you need to install the .NET Core Global Tool.

dotnet tool install --global EntityFrameworkCore.Generator

After the tool has been install, the efg command line will be available. Run efg --help for command line options

Initialize Configuration

Entity Framework Core Generator has many options available to customize the generated output. The initialize command is used to create the configuration yaml file and optionally set the database connection string. Update the configuration file to configure the generated output.

The following command will create an initial generation.yaml configuration file as well as setting a user secret to store the connection string.

efg initialize -c "Data Source=(local);Initial Catalog=Tracker;Integrated Security=True" ^
  --id "984ef0cf-2b22-4fd1-876d-e01499da4c1f" ^
  --name "ConnectionStrings:Tracker"

The following is the yaml file created by default

project:
  namespace: '{Database.Name}'
  directory: .\
database:
  connectionName: ConnectionStrings:Tracker
  userSecretsId: 984ef0cf-2b22-4fd1-876d-e01499da4c1f
data:
  context:
    name: '{Database.Name}Context'
    baseClass: DbContext
    namespace: '{Project.Namespace}.Data'
    directory: '{Project.Directory}\Data'
  entity:
    namespace: '{Project.Namespace}.Data.Entities'
    directory: '{Project.Directory}\Data\Entities'
  mapping:
    namespace: '{Project.Namespace}.Data.Mapping'
    directory: '{Project.Directory}\Data\Mapping'
  query:
    generate: true
    indexPrefix: By
    uniquePrefix: GetBy
    namespace: '{Project.Namespace}.Data.Queries'
    directory: '{Project.Directory}\Data\Queries'
model:
  shared:
    namespace: '{Project.Namespace}.Domain.Models'
    directory: '{Project.Directory}\Domain\Models'
  read:
    generate: true
    name: '{Entity.Name}ReadModel'
  create:
    generate: true
    name: '{Entity.Name}CreateModel'
  update:
    generate: true
    name: '{Entity.Name}UpdateModel'
  mapper:
    generate: true
    name: '{Entity.Name}Profile'
    baseClass: AutoMapper.Profile
    namespace: '{Project.Namespace}.Domain.Mapping'
    directory: '{Project.Directory}\Domain\Mapping'
  validator:
    generate: true
    name: '{Model.Name}Validator'
    baseClass: AbstractValidator<{Model.Name}>
    namespace: '{Project.Namespace}.Domain.Validation'
    directory: '{Project.Directory}\Domain\Validation'

Generate Entity Framework Core Model

In order to use Entity Framework Core, you need a DbContext, entity classes and mapping from a table to those entities. Entity Framework Core Generator creates these for you from the database. To generate the files, run the generate command

efg generate

Tracker Project

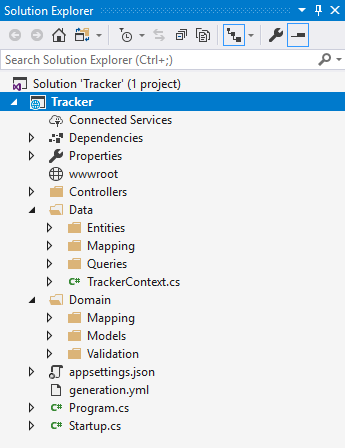

Generation Output

The generate command will create the follow files and directory structure by default. The root directory defaults to the current working directory. Most of the output names and locations can be customized in the configuration file

Data Context Output

The EntityFramework DbContext file will be created in the Data directory.

Entities Output

The Entities directory will contain the generated source file for entity class representing each table.

Mapping Output

The Mapping directory contains a fluent mapping class to map each entity to its table.

Model Output

Entity Framework Core Generator has an option to create view models for each entity. The output will go in the Domain directory by default.

Generated Model Cleanup

Entity Framework Core Generator supports safe regeneration via region replacement and source code parsing. A typical workflow for a project requires many database changes and updates. Being able to regenerate the entities and associated files is a huge time saver.

Rename Property

The code generator makes its best attempt to convert names to there plural form using the Humanizer library. In some cases it fails. The first cleanup to do is to rename the TrackerContext.TaskExtendeds property to TrackerContext.TaskExtended.

Rename Refactor

When the generate command is re-run, this refactor will be saved.

Identifier Interface

In order to handle entities in a generic way, we’ll need to add some interfaces to them. We’ll add the IHaveIdentifier to all entities and models.

Interface definition

namespace Tracker.Definitions
{
    public interface IHaveIdentifier
    {
        Guid Id { get; set; }
    }
}

Add the interface to all entities that have an Id primary key. Below is an example entity class with the interface added.

public partial class Priority : IHaveIdentifier
{
    public Priority()
    {
        #region Generated Constructor
        Tasks = new HashSet<Task>();
        #endregion
    }

    #region Generated Properties
    public Guid Id { get; set; }

    public string Name { get; set; }

    public string Description { get; set; }

    public int DisplayOrder { get; set; }

    public bool IsActive { get; set; }

    public DateTimeOffset Created { get; set; }

    public string CreatedBy { get; set; }

    public DateTimeOffset Updated { get; set; }

    public string UpdatedBy { get; set; }

    public Byte[] RowVersion { get; set; }
    #endregion

    #region Generated Relationships
    public virtual ICollection<Task> Tasks { get; set; }
    #endregion
}

Notice the file has some regions like #region Generated .... These regions are what get replace the next time efg generate is called. Since the interface was added outside of those regions, it will not get overwritten.

Read more about regeneration in the documentation.

Web API

You’ll need to add a few more things to your Web API project to get things going.

Application Startup

You’ll need to change the application startup to register the Entity Framework context as well as register the AutoMapper profiles.

using AutoMapper;
using Microsoft.AspNetCore.Builder;
using Microsoft.AspNetCore.Hosting;
using Microsoft.AspNetCore.Mvc;
using Microsoft.EntityFrameworkCore;
using Microsoft.Extensions.Configuration;
using Microsoft.Extensions.DependencyInjection;
using Swashbuckle.AspNetCore.Swagger;
using Tracker.Data;

namespace Tracker
{
    public class Startup
    {
        public Startup(IConfiguration configuration)
        {
            Configuration = configuration;
        }

        public IConfiguration Configuration { get; }

        // This method gets called by the runtime. Use this method to add services to the container.
        public void ConfigureServices(IServiceCollection services)
        {
            // sharing the user secret configuration file
            var connectionString = Configuration.GetConnectionString("Tracker");

            services.AddDbContext<TrackerContext>(options => options.UseSqlServer(connectionString));

            // register AutoMapper profiles
            services.AddAutoMapper();

            services
                .AddMvc()
                .AddFluentValidation(fv => fv.RegisterValidatorsFromAssemblyContaining<Startup>()) // register validators
                .SetCompatibilityVersion(CompatibilityVersion.Version_2_2);

            // Register the Swagger generator
            services.AddSwaggerGen(c =>
            {
                c.SwaggerDoc("v1", new Info { Title = "Tracker API", Version = "v1" });
            });
        }

        // This method gets called by the runtime. Use this method to configure the HTTP request pipeline.
        public void Configure(IApplicationBuilder app, IHostingEnvironment env)
        {
            if (env.IsDevelopment())
            {
                app.UseDeveloperExceptionPage();
            }
            else
            {
                app.UseHsts();
            }

            // Enable middleware to serve generated Swagger as a JSON endpoint.
            app.UseSwagger();

            // Enable middleware to serve swagger-ui, specifying the Swagger JSON endpoint.
            app.UseSwaggerUI(c =>
            {
                c.SwaggerEndpoint("/swagger/v1/swagger.json", "Tracker API");
            });

            app.UseHttpsRedirection();
            app.UseMvc();
        }
    }
}

Base Controller

To make the basic read, create and update endpoints easier, create a base controller class like the following.

using System;
using System.Collections.Generic;
using System.Linq;
using System.Linq.Expressions;
using System.Threading;
using System.Threading.Tasks;
using AutoMapper;
using AutoMapper.QueryableExtensions;
using Microsoft.AspNetCore.Mvc;
using Microsoft.EntityFrameworkCore;
using Tracker.Data;
using Tracker.Definitions;

namespace Tracker.Controllers
{
    [ApiController]
    [Produces("application/json")]
    public abstract class EntityControllerBase<TEntity, TReadModel, TCreateModel, TUpdateModel> : ControllerBase
        where TEntity : class, IHaveIdentifier
    {

        protected EntityControllerBase(TrackerContext dataContext, IMapper mapper)
        {
            DataContext = dataContext;
            Mapper = mapper;
        }


        protected TrackerContext DataContext { get; }

        protected IMapper Mapper { get; }


        protected virtual async Task<TReadModel> ReadModel(Guid id, CancellationToken cancellationToken = default(CancellationToken))
        {
            var model = await DataContext
                .Set<TEntity>()
                .AsNoTracking()
                .Where(p => p.Id == id)
                .ProjectTo<TReadModel>(Mapper.ConfigurationProvider)
                .FirstOrDefaultAsync(cancellationToken);

            return model;
        }

        protected virtual async Task<TReadModel> CreateModel(TCreateModel createModel, CancellationToken cancellationToken = default(CancellationToken))
        {
            // create new entity from model
            var entity = Mapper.Map<TEntity>(createModel);

            // add to data set, id should be generated
            await DataContext
                .Set<TEntity>()
                .AddAsync(entity, cancellationToken);

            // save to database
            await DataContext
                .SaveChangesAsync(cancellationToken);

            // convert to read model
            var readModel = await ReadModel(entity.Id, cancellationToken);

            return readModel;
        }

        protected virtual async Task<TReadModel> UpdateModel(Guid id, TUpdateModel updateModel, CancellationToken cancellationToken = default(CancellationToken))
        {
            var keyValue = new object[] { id };

            // find entity to update by id, not model id
            var entity = await DataContext
                .Set<TEntity>()
                .FindAsync(keyValue, cancellationToken);

            if (entity == null)
                return default(TReadModel);

            // copy updates from model to entity
            Mapper.Map(updateModel, entity);

            // save updates
            await DataContext
                .SaveChangesAsync(cancellationToken);

            // return read model
            var readModel = await ReadModel(id, cancellationToken);
            return readModel;
        }

        protected virtual async Task<TReadModel> DeleteModel(Guid id, CancellationToken cancellationToken = default(CancellationToken))
        {
            var dbSet = DataContext
                .Set<TEntity>();

            var keyValue = new object[] { id };

            // find entity to delete by id
            var entity = await dbSet
                .FindAsync(keyValue, cancellationToken);

            if (entity == null)
                return default(TReadModel);

            // return read model
            var readModel = await ReadModel(id, cancellationToken);

            // delete entry
            dbSet.Remove(entity);

            // save
            await DataContext
                .SaveChangesAsync(cancellationToken);

            return readModel;
        }

        protected virtual async Task<IReadOnlyList<TReadModel>> QueryModel(Expression<Func<TEntity, bool>> predicate = null, CancellationToken cancellationToken = default(CancellationToken))
        {
            var dbSet = DataContext
                .Set<TEntity>();

            var query = dbSet.AsNoTracking();
            if (predicate != null)
                query = query.Where(predicate);

            var results = await query
                .ProjectTo<TReadModel>(Mapper.ConfigurationProvider)
                .ToListAsync(cancellationToken);

            return results;
        }
    }
}

Task Controller

Create a TaskController to Create, Update, Read and Delete tasks.

using System;
using System.Collections.Generic;
using System.Threading;
using System.Threading.Tasks;
using AutoMapper;
using Microsoft.AspNetCore.Mvc;
using Tracker.Data;
using Tracker.Domain.Models;

namespace Tracker.Controllers
{
    [Route("api/Task")]
    public class TaskController : EntityControllerBase<Data.Entities.Task, TaskReadModel, TaskCreateModel, TaskUpdateModel>
    {
        public TaskController(TrackerContext dataContext, IMapper mapper) : base(dataContext, mapper)
        {
        }

        [HttpGet("{id}")]
        public async Task<ActionResult<TaskReadModel>> Get(CancellationToken cancellationToken, Guid id)
        {
            var readModel = await ReadModel(id, cancellationToken);

            if (readModel == null)
                return NotFound();

            return readModel;
        }

        [HttpGet("")]
        public async Task<ActionResult<IReadOnlyList<TaskReadModel>>> List(CancellationToken cancellationToken)
        {
            var listResult = await QueryModel(null, cancellationToken);
            return Ok(listResult);
        }

        [HttpPost("")]
        public async Task<ActionResult<TaskReadModel>> Create(CancellationToken cancellationToken, TaskCreateModel createModel)
        {
            var readModel = await CreateModel(createModel, cancellationToken);

            return readModel;
        }

        [HttpPut("{id}")]
        public async Task<ActionResult<TaskReadModel>> Update(CancellationToken cancellationToken, Guid id, TaskUpdateModel updateModel)
        {
            var readModel = await UpdateModel(id, updateModel, cancellationToken);
            if (readModel == null)
                return NotFound();

            return readModel;
        }

        [HttpDelete("{id}")]
        public async Task<ActionResult<TaskReadModel>> Delete(CancellationToken cancellationToken, Guid id)
        {
            var readModel = await DeleteModel(id, cancellationToken);
            if (readModel == null)
                return NotFound();

            return readModel;
        }
    }
}

Test Endpoint

You can use the Swagger UI to test the end points

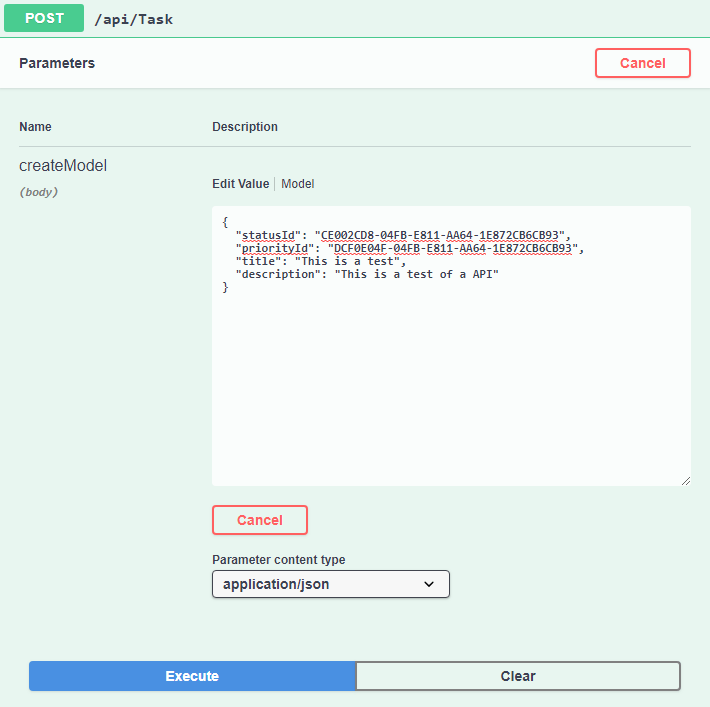

Swagger Task Post Request

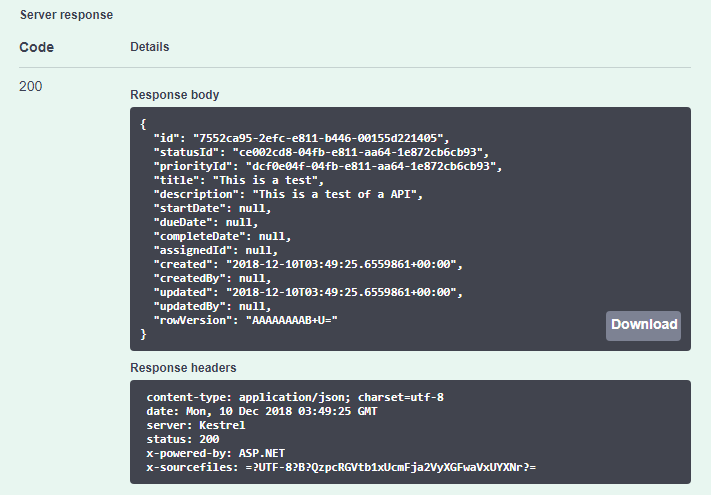

Swagger Task Post Response

Database Change / Regenerate

Now that you have the basic Web API project setup, you can run efg generate after any database change to keep all your entity and view models in sync with the database.


Entity Framework Core Generator - Generating a model from an existing database

Overview

.NET Core command-line (CLI) tool to generate Entity Framework Core model from an existing database.

Features

  • Entity Framework Core database first model generation
  • Safe regeneration via region replacement
  • Safe Renaming via mapping file parsing
  • Optionally generate read, create and update models from entity
  • Optionally generate validation and object mapper classes

Documentation

Entity Framework Core Generator documentation is available via Read the Docs

Installation

To install EntityFrameworkCore.Generator tool, run the following command in the console

dotnet tool install --global EntityFrameworkCore.Generator

After the tool has been install, the efg command line will be available. Run efg --help for command line options

Generate Command

Entity Framework Core Generator (efg) creates source code files from a database schema. To generate the files with no configuration, run the following

efg generate -c <ConnectionString>

Replace <ConnectionString> with a valid database connection string.

Generation Output

The generate command will create the follow files and directory structure by default. The root directory defaults to the current working directory. Most of the output names and locations can be customized in the configuration file

Data Context Output

The EntityFramework DbContext file will be created in the root directory.

Entities Output

The entities directory will contain the generated source file for entity class representing each table.

Mapping Output

The mapping directory contains a fluent mapping class to map each entity to its table.

Initialize Command

The initialize command is used to create the configuration yaml file and optionally set the connection string. The configuration file has many options to configure the generated output. See the configuration file documentation for more details.

The following command will create an initial generation.yaml configuration file as well as setting a user secret to store the connection string.

efg initialize -c <ConnectionString>

When a generation.yaml configuration file exists, you can run efg generate in the same directory to generate the source using that configuration file.

Regeneration

Entity Framework Core Generator supports safe regeneration via region replacement and source code parsing. A typical workflow for a project requires many database changes and updates. Being able to regenerate the entities and associated files is a huge time saver.

Region Replacement

All the templates output a region on first generation. On future regeneration, only the regions are replaced. This keeps any other changes you’ve made to the source file.

Example of a generated entity class

public partial class Status
{
    public Status()
    {
        #region Generated Constructor
        Tasks = new HashSet<Task>();
        #endregion
    }

    #region Generated Properties
    public int Id { get; set; }

    public string Name { get; set; }

    public string Description { get; set; }

    public int DisplayOrder { get; set; }

    public bool IsActive { get; set; }

    public DateTimeOffset Created { get; set; }

    public string CreatedBy { get; set; }

    public DateTimeOffset Updated { get; set; }

    public string UpdatedBy { get; set; }

    public Byte[] RowVersion { get; set; }
    #endregion

    #region Generated Relationships
    public virtual ICollection<Task> Tasks { get; set; }
    #endregion
}

When the generate command is re-run, the Generated Constructor, Generated Properties and Generated Relationships regions will be replace with the current output of the template. Any other changes outside those regions will be safe.

Source Parsing

In order to capture and preserve Entity, Property and DbContext renames, the generate command parses any existing mapping and DbContext class to capture how things are named. This allows you to use the full extend of Visual Studio’s refactoring tools to rename things as you like. Then, when regenerating, those changes won’t be lost.

Database Providers

Entity Framework Core Generator supports the following databases.

  • SQL Server
  • PostgreSQL Coming Soon
  • MySQL Coming Soon
  • Sqlite Coming Soon

The provider can be set via command line or via the configuration file.

Set via command line

efg generate -c <ConnectionString> -p <Provider>

Set in configuration file

database:
  connectionString: 'Data Source=(local);Initial Catalog=Tracker;Integrated Security=True'
  provider: SqlServer

Database Schema

The database schema is loaded from the metadata model factory implementation of IDatabaseModelFactory. Entity Framework Core Generator uses the implemented interface from each of the supported providers similar to how ef dbcontext scaffold works.

View Models

Entity Framework Core Generator supports generating Read, Create and Update view models from an entity. Many projects rely on view models to shape data. The model templates can be used to quickly get the basic view models created. The model templates also support regeneration so any database change can easily be sync’d to the view models.


EntityChange - Library to compare two entity object graphs

Overview

Library to compare two entity object graphs detecting changes

Features

  • Compare complete entity graph including child entities, collections and dictionaries
  • Collection compare by index or element equality
  • Dictionary compare by key
  • Custom value string formatter
  • Custom entity equality compare
  • Markdown or Html change report formatter

Download

The EntityChange library is available on nuget.org via package name EntityChange.

To install EntityChange, run the following command in the Package Manager Console

PM> Install-Package EntityChange

NuGet Version

Configuration

Configure the Contact properties and collections.

EntityChange.Configuration.Default.Configure(config => config
    .Entity<Contact>(e =>
    {
        // set the FirstName display name
        e.Property(p => p.FirstName).Display("First Name");
        // compare the Roles collection by string equality
        e.Collection(p => p.Roles)
            .CollectionComparison(CollectionComparison.ObjectEquality)
            .ElementEquality(StringEquality.OrdinalIgnoreCase);
        // set how to format the EmailAddress entity as a string
        e.Collection(p => p.EmailAddresses).ElementFormatter(v =>
        {
            var address = v as EmailAddress;
            return address?.Address;
        });
    })
    .Entity<EmailAddress>(e =>
    {
        e.Property(p => p.Address).Display("Email Address");
    })
);

Comparison

Compare to Contact entities

// create comparer using default configuration
var comparer = new EntityComparer();

// compare original and current instances generating change list
var changes = comparer.Compare(original, current).ToList();

Change Report

Sample output from the MarkdownFormatter

OUTPUT

  • Removed Administrator from Roles
  • Changed Email Address from user@Personal.com to user@gmail.com
  • Added user@home.com to Email Addresses
  • Changed Status from New to Verified
  • Changed Updated from 5/17/2016 8:51:59 PM to 5/17/2016 8:52:00 PM
  • Changed Zip from 10026 to 10027
  • Changed Number from 888-555-1212 to 800-555-1212
  • Added Blah to Categories
  • Changed Data from 1 to 2
  • Changed Data from ./home to ./path

MongoDB.Messaging - MongoDB Messaging Library

Overview

The MongoDB Messaging library is a lightweight queue pub/sub processing library based on MongoDB data store.

Features

  • Easy to use Fluent API
  • Self creating and cleaning of Queues
  • Configurable message expiration
  • Generic data payload
  • Trigger processing from oplog change monitoring
  • Configurable auto retry on error
  • Message processing timeout
  • Scalable via subscriber worker count
  • Supports distributed locks

Download

The MongoDB.Messaging library is available on nuget.org via package name MongoDB.Messaging.

To install MongoDB.Messaging, run the following command in the Package Manager Console

PM> Install-Package MongoDB.Messaging

NuGet Version

Concepts

Queue

A queue is equivalent to a MongoDB collection. The name of the queue will match the MongoDB collection name.

Queue names must be alphanumeric, without spaces or symbols.

It is a good practice to suffix the queue name with Queue.

Message

A message is the high level object that is a generic definition of a messages. The message contains processing level information. The message object is automatically created and updated by the Fluent API and should not be updated directly by the publisher or subscriber.

Data

Data is the message payload to be processed with the message. Use data to pass information you need to process the message.

The data object must be serializable by MongoDB driver.

It is a good practice to have one queue per data object being passed to limit confusion and to maintain simplicity when subscribing to the queue.

Publish

Publishing a message adds the message with the corresponding data to a queue for processing.

Subscribe

In order to process a message on a queue, an application needs to subscribe to a queue. There can be many subscribers to a queue to scale the load across processes. A subscriber can also set the worker count to scale the number of processing threads for that subscriber.

The framework ensures that only one subscriber can process a messages.

Queue Configuration

The queue configuration is used to set default values on messages published to a queue.

An example of using the fluent api to configure the sleep queue.

MessageQueue.Default.Configure(c => c
    .Connection("MongoMessaging")
    .Queue(s => s
        .Name(SleepMessage.QueueName)
        .Priority(MessagePriority.Normal)
        .ResponseQueue("ReplyQueueName")
        .Retry(5)
    )
);

Properties

Connection is the app.config connection string name used to connect to MongoDB.

Name is the name of the queue to configure.
Retry is the number of times the message should be retried on error. Set to zero, default, to not retry.
Priority is the default priority to publish the message with.
ResponseQueue is the name of the queue where responses should be sent.

Publish Message

To publish a message to a queue, use the fluent api.

var message = await MessageQueue.Default.Publish(m => m
    .Queue(SleepMessage.QueueName)
    .Data(sleepMessage)
    .Correlation("321B4671-3B4C-4B97-8E81-D6A8CF22D4F0")
    .Description("User friendly description of the message")
    .Priority(MessagePriority.Normal)
    .Retry(1)
);

Properties

Required
Queue is the name of the queue to publish to.
Data is the object to pass in the message. Used to process the message by the subscriber.

Optional
Correlation is an identifier used to link messages together.
Description is a user friendly description of the message.

Overrides
Retry is the number of times the message should be retried on error.
Priority is the default priority to publish the message with.
ResponseQueue is the name of the queue where responses should be sent.

Notes

  • When setting the Data property, the message Name will be set to the Type name of the data object.
  • When setting the Data property and Description hasn’t been set, the data object ToString() value will be set as the description.
  • If the underlying storage collection doesn’t exist, it will be created on first publish

Subscribe to Message

To subscribe to a queue, use the fluent api. The subscribe handler must implement IMessageSubscriber.

MessageQueue.Default.Configure(c => c
    .Connection("MongoMessaging")
    .Subscribe(s => s
        .Queue(SleepMessage.QueueName)
        .Handler<SleepHandler>()
        .Workers(4)
    )
);

To speed up processing, you can monitor the oplog for changes to trigger processing. The connection must have access to local.oplog.rs

MessageQueue.Default.Configure(c => c
    .Connection("MongoMessaging")
    .Subscribe(s => s
        .Queue(SleepMessage.QueueName)
        .Handler<SleepHandler>()
        .Workers(4)
        .Trigger()
    )
);

Properties

Required
Queue is the name of the queue to publish to.
Handler is the class that implements IMessageSubscriber. This is what processes the message.

Optional
Workers is the number of worker processes.
ExpireError is how long to keep error messages.
ExpireWarning is how long to keep warning messages.
ExpireSuccessful is how long to keep successful messages.
PollTime is the amount of time between work polling. If using Triggger, set to longer time. Retry is a class that implements IMessageRetry. IMessageRetry controls if an error message should be retried.
Timeout is the amount of time before a processing message times out.
TimeoutAction is how to handle timed out messages. Options are Fail or Retry.
Trigger to enable monitoring of the oplog for changes to trigger processing.

Message Service

In order for the message subscribers to process messages off queue, the MessageService needs to be created and Start called. Note, the MessageService.Stop() method tries to gracefully stop by waiting for active processes to finish.

_messageService = new MessageService();

// on service or application start
_messageService.Start();

// on service stop.
_messageService.Stop();

IMessageSubscriber Interface

The following is a sample implementation of IMessageSubscriber

public class SleepHandler : IMessageSubscriber
{
    public MessageResult Process(ProcessContext context)
    {
        // get message data
        var sleepMessage = context.Data<SleepMessage>();

        // Do processing here

        return MessageResult.Successful;
    }

    public void Dispose()
    {
        // free resources
    }
}

IMessageRetry Interface

The IMessageRetry interface allows for customization of the retry of failed messages.

The following is the default implementation of IMessageRetry

public class MessageRetry : IMessageRetry
{
    public virtual bool ShouldRetry(ProcessContext processContext, Exception exception)
    {
        // get current message
        var message = processContext.Message;

        // true to retry message
        return message.ErrorCount < message.RetryCount;
    }

    public virtual DateTime NextAttempt(ProcessContext processContext)
    {
        var message = processContext.Message;

        // retry weight, 1 = 1 min, 2 = 30 min, 3 = 2 hrs, 4+ = 8 hrs
        if (message.ErrorCount > 3)
            return DateTime.Now.AddHours(8);

        if (message.ErrorCount == 3)
            return DateTime.Now.AddHours(2);

        if (message.ErrorCount == 2)
            return DateTime.Now.AddMinutes(30);

        // default
        return DateTime.Now.AddMinutes(1);
    }
}

Process Locks

The library has supports distributed locks. The following are the lock types supported.

DistributedLock Distributed Lock manager provides synchronized access to a resources over a network
ThrottleLock Throttle Lock Manager controls how frequent a process can run

This is an example of using the DistributedLock.

var lockName = "PrintMessage";

// get MongoDB collection to store lock
var collection = GetCollection();

// create lock with timeout, max time it will wait for lock, of 5 minutes
var locker = new DistributedLock(collection, TimeSpan.FromMinutes(5));

// acquire lock; if can't, it will retry to get lock up to timeout value
var result = locker.Acquire(lockName);
if (!result)
    return; // acquire lock timeout

try
{
    // do processing here

}
finally
{
    // release lock
    locker.Release(lockName);
}
